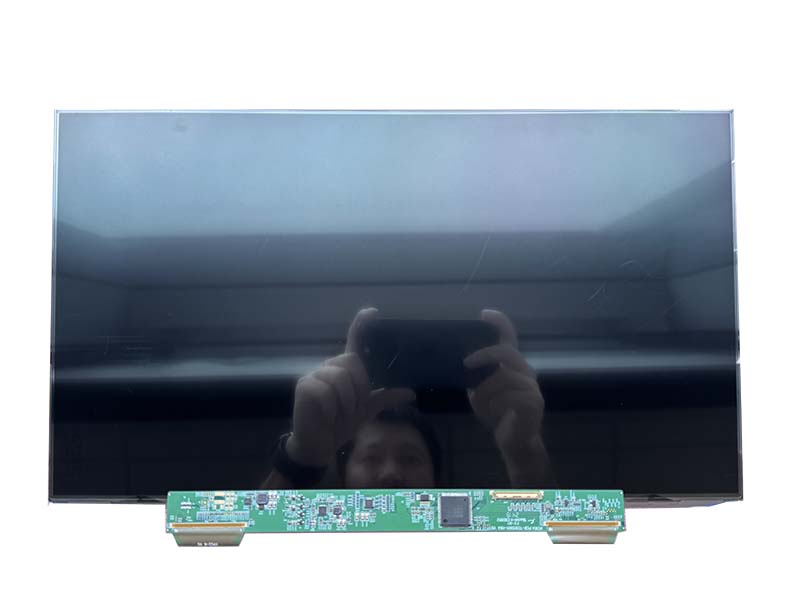

15.6" TFT LCD Panel 1920×1080 — 1000nits, eDP/LVDS
Industrial-grade 15.6" normally black transmissive TFT LCD panel with 1920×1080 Full HD resolution, 1000nits high brightness, eDP/LVDS interface, and wide operating temperature range for outdoor HMI, industrial control, and embedded display systems.
This 15.6" TFT LCD panel is intended for products that need a large visual area, Full HD image detail, and stronger readability than a standard indoor notebook-class display can provide. The 1920×1080 resolution gives enough pixel density for dashboards, alarm tables, trend charts, inspection images, configuration screens, and camera feeds without forcing the user interface into a cramped layout.
The 1000-nit brightness rating makes this panel relevant for semi-outdoor and outdoor-facing equipment, but it should still be evaluated as part of the complete front stack. Cover glass, touch sensor, air gap, optical bonding, anti-glare treatment, and enclosure angle all affect readability. A large display can reflect a wide area of the environment, so the optical design should be reviewed with the actual product geometry rather than from a bare panel sample.
Engineering Fit
The 15.6-inch size is useful when operators need to see more information at once. Typical examples include industrial control terminals, EV charger interfaces, machine monitoring panels, transportation systems, medical carts, production line dashboards, and outdoor kiosks. The larger active area supports multi-panel UI layouts, but it also increases mechanical responsibility. The enclosure must control flatness, panel support, cover lens stress, cable exit, and service access.
Because this class of panel can support eDP or LVDS depending on configuration, the interface should be chosen early. eDP is usually attractive for Full HD resolution and modern processors, while LVDS may be preferred in some industrial platforms with established display pipelines. Either way, the cable route, connector retention, shielding, and grounding should be reviewed before the enclosure is frozen.
Optical and Thermal Notes
At 1000 nits, backlight power and heat should be treated as design inputs. A sealed outdoor terminal can see high internal temperature from both electronics and solar load. If the product runs the display at full brightness for long shifts, validate backlight current, driver efficiency, LED derating, and enclosure temperature. Automatic dimming can protect lifetime, but the minimum brightness must still support safe operation.
For public or industrial use, a cover lens is usually required. The lens improves impact resistance and cleaning behavior, but it can add reflection and thickness. Optical bonding may improve contrast, reduce internal reflection, and make the front stack feel more rigid. Anti-glare or anti-reflective treatment should be selected based on cleaning, abrasion, touch use, and the amount of fine text in the interface.
Approval Checklist
- Confirm the exact interface version, pin mapping, voltage levels, and initialization requirements.
- Test the final cover glass and touch stack under the real lighting environment.
- Measure internal temperature at maximum brightness and maximum ambient condition.
- Check FPC exit direction, connector access, and cable strain during assembly.
- Validate cold start, warm restart, dimming, sleep and resume behavior.
- Keep the panel drawing, datasheet, timing settings, and approved sample revision under control.
Best-Fit Applications
This panel class is a strong candidate when the product needs a large HMI, high information density, and reliable visibility across a wider viewing area. It is less ideal for battery-powered devices, very thin enclosures with poor thermal paths, or products where the enclosure cannot support the size and weight of a larger front stack.
For more product details, see the Rocktech 15.6-inch TFT LCD panel: RK156IFHD03E.
