3.46" ADS – 480×480 (Square)

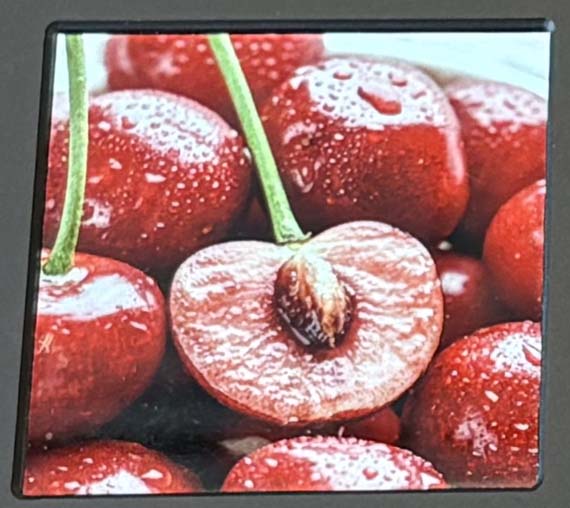

This 3.46" 480×480 square ADS TFT LCD module is a compact display option for products that need a modern graphical interface in a very small front area. The square format is useful when the device is built around a centered control layout, rotary-style menu, status dashboard, or compact touch interface rather than a wide rectangular screen.

The 480×480 resolution provides a balanced pixel density for icons, labels, and simple graphics. At this size, UI discipline is important. Small displays should not carry too much information at once. The best designs use clear hierarchy, strong contrast, large touch targets, and short labels. If the product requires dense tables or complex charts, a larger display should be considered.

Engineering Fit

This module is suitable for smart home control panels, compact HMI terminals, industrial instruments, handheld controllers, access control devices, thermostat-style products, and small square UI displays. The active area of 62.064 × 62.064 mm makes it useful for products with tight mechanical limits, especially where a circular or square industrial design is preferred.

ADS wide-viewing technology helps maintain readability from different angles. That is useful for wall-mounted products, handheld controls, and equipment panels where the user may not be directly in front of the display. The wide operating temperature range of -40°C to +85°C is also important for devices installed in less controlled environments.

Interface and Driver Notes

The module lists RGB / MIPI / customizable interface options, so the final electrical design should be based on the confirmed datasheet and supplier configuration. RGB may be easier on some MCU platforms but needs more pins. MIPI DSI may reduce pin count but requires command initialization and stricter routing. The HX8272B driver IC should be reviewed for timing, reset behavior, sleep mode, and initialization sequence.

Because the panel is compact, connector location and FPC handling can be more important than expected. The enclosure should leave enough space for cable bend radius, connector access, and strain relief. If the module is used in a handheld product, vibration and repeated handling should be considered.

Touch and Cover Lens

Optional PCAP touch can make this panel suitable for modern compact controls. Touch behavior should be validated with the final cover lens, ink border, adhesive, and enclosure. On a small square display, edge accuracy matters because UI targets often sit close to the perimeter. If the design uses a thick or decorative cover glass, touch tuning must be tested with that exact stack.

Optical bonding can improve contrast and front-stack rigidity, but the process and rework implications should be reviewed. For compact devices, even small alignment errors between the LCD, touch sensor, and cover lens are visible, so mechanical tolerances and cosmetic criteria should be defined early.

Approval Checklist

• Confirm the final interface configuration before PCB design.
• Test the UI on the actual 480×480 square active area.
• Validate touch performance near corners and edges.
• Check connector position, FPC bend radius, and assembly access.
• Review low-temperature startup and high-temperature operation.
• Control driver initialization, timing, and approved sample revision.

Best-Fit Applications

This display is strongest in compact products where the screen provides focused control and status information. It is a good fit for smart controls, handheld interfaces, access devices, compact instruments, and industrial modules that need a square visual format with wide viewing behavior and strong environmental margin.
